FLUKE 117 / 323 COMBO KIT (MULTİMETRE + PENSAMPERMETRE)
Ürün İncelemesi: Fluke 117/323 Electricians Multimeter Combo Kit

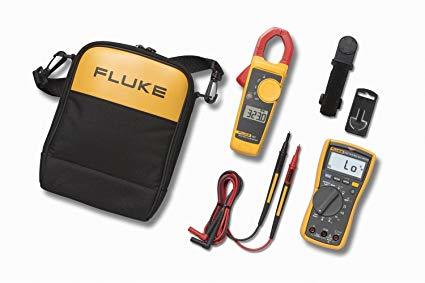

Having the right tool for the mission is essential. Having all the right tools when you need them is even better. The Fluke 117/323 Electricians Multimeter Combo Kit gives you the best in a versatile, rugged multimeter and a fast-acting, general purpose clamp meter.
The Fluke 117 provides non-contact voltage detection, an AutoV/LoZ function, Min/Max/Average readings, plus frequency and capacitance measurements. It's easy to use and saves you time.
Electrical meters need to handle whatever comes up on the mission. That's why the Fluke 117 Electrician's Multimeter is certified for use in CAT III 600 V environments.
True RMS measurements and optimized ergonomics make the Fluke 323 True RMS Clamp Meter the best general purpose clamp meter for commercial and residential electricians. The Fluke 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.
Together, the Fluke 117 Electricians Multimeter and 323 True-rms Clamp Meter give electricians the right tools for the mission
Özellikler: Fluke 117/323 Electricians Multimeter Combo Kit
Fluke 117 Digital Multimeter
SpecificationsMaximum voltage between any terminal and earth ground600 VSurge protection6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2Fuse for A input11 A, 1000 V FAST Fuse (Fluke PN 803293)DisplayDigital: 6,000 counts, updates 4 per secondBar graph33 segments, updates 32 per secondOperating temperature-10 °C to +50 °CStorage temperature-40 °C to +60 °CBattery type9 volt Alkaline, NEDA 1604A/ IEC 6LR61Battery life400 hours typical, without backlightAccuracy SpecificationsDC millivoltsRange/Resolution600.0 mV / 0.1 mVAccuracy±([% of reading] + [counts]): 0.5% + 2DC voltsRange/Resolution6.000 V / 0.001 V
60.00 V / 0.01 V
600.00 V / 0.1 VAccuracy±([% of reading] + [counts]): 0.5% + 2Auto voltsRange/Resolution600.0 V / 0.1 VAccuracy2.0% + 3 (DC, 45 Hz to 500 Hz)
4.0% + 3 (500 Hz to 1 kHz)AC millivolts¹ True RMSRange/Resolution600.0 mV / 0.1 mVAccuracy1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)AC volts¹ True RMSRange/Resolution6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 VAccuracy1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)ContinuityRange/Resolution600 Ω / 1 ΩAccuracyBeeper on < 20 Ω, off > 250 Ω; detects opens or shorts of
500 μs or longer.OhmsRange/Resolution600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩAccuracy0.9% + 1Range/Resolution40.00 MΩ / 0.01 MΩAccuracy5% + 2Diode testRange/Resolution2.00 V / 0.001 VAccuracy0.9% + 2CapacitanceRange/Resolution1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF / 1 μF
100 μF to 1000 μFAccuracy1.9% + 2Range/Resolution> 1000 μFAccuracy5% + 20%Lo-Z capacitanceRange1 nF to 500 μFAccuracy10% + 2 typicalAC amps True RMS (45 Hz to 500 Hz)Range/Resolution6.000 A / 0.1 A
10.00 A / 0.01 AAccuracy1.5% + 3
20 A continuous overload for 30 seconds maxDC ampsRange/Resolution6.000 A / 0.1 A10.00 A / 0.01 AAccuracy1.0% + 3
20 A continuous overload for 30 seconds maxHz (V or A input)²Range/Resolution99.99 Hz / 0.01 Hz
999.99 Hz / 0.1 Hz
9.999 Hz / 0.001 Hz
50.00 Hz / 0.01 HzAccuracy0.1% + 2
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.
2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
-
- Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.
- Temperature Range/Resolution: -40 °F to 752 °F / 0.2 °F.
Mechanical and General SpecificationsSize167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)Weight550 gWarranty3 years
Fluke 323 True RMS Clamp Meter
SpecificationsAC currentRange400.0 AAccuracy2% ±5 digits
(45 Hz to 65 Hz)
2.5% ±5 digits
(65 Hz to 400 Hz)AC voltageRange600.0 VAccuracy1.5% ±5 digitsDC voltageRange600.0 VAccuracy1.0% ±5 digitsResistanceRange/Resolution400.0 Ω/ 4000 ΩAccuracy1.0% ±5 digitsContinuity≤ 70 ΩAC responseTrue RMSData holdYesSizeH x W x D (mm)207 x 75 x 34Max wire diameter30 mm (600 MCM)Weight265 gCategory ratingCAT III 600 V
CAT IV 300 VWarrantyTwo-year
